Sewer pipes

Sewer Rehabilitation

Two-component flooding procedure for efficient sewer rehabilitation

STAUBCO® Sewer Rehabilitation System

Our STAUBCO® Sewer Rehabilitation System, which has general technical approval no. Z-42.3-354 from the German Centre of Competence for Construction, enables you to rehabilitate sewer systems with minimal effort.

This is a two-component flooding procedure for the temporary rehabilitation of buried sewer channels and pipes of nominal diameters DN 100 to DN 500 and their associated shafts.

The system is based on the chemical bonding of the two easy-to-use components

  • STAUBCO® Silikatkomponente A
  • STAUBCO® Härter CA

As the manufacturer, we sell both components to professional sewer rehabilitation businesses.

Benefits to you at a glance

  • You profit from our experience. STAUBCO® has proven its value for more than 20 years in practical applications all across Germany.
  • You don’t have to dig up pipes when you use STAUBCO®.
  • STAUBCO® is extremely economical.
  • The individual components are not considered hazardous materials as defined by the German Ordinance on Hazardous Substances (Gefahrstoffverordnung).
  • The finished individual components can be delivered at any time. We supply everywhere in Germany. You can even pick up the STAUBCO® components with your own suction vehicle.

Product Information

STAUBCO® Silikatkomponente A

We developed STAUBCO® Silikatkomponente A specifically for sealing sewers. During the flooding procedure, the material is not lost to the soil, but instead remains in there due to his high adhesive strength and fills in unsealed couplings or cavities in the soil.

STAUBCO® Härter CA

STAUBCO® Härter CA has an extremely low viscosity and can therefore rapidly flow through STAUBCO® Silicate Component A without pushing the material out in front of it.

Field of application

The STAUBCO® procedure is a no-dig sealing method for:

  • sewer lines,
  • sewer pipes and
  • associated shafts

made of

  • concrete,
  • stoneware,
  • fiber cement,
  • masonry (for shafts only),
  • cast iron.

Joint couplings in PVC-U sewer systems may also be rehabilitated using this procedure.

Damage profile

Application conditions

The STAUBCO® procedure may be used for the rehabilitation of crack formations, leaking pipe couplings and connections (regardless of pipe material) under the following conditions:

  • radial cracks with a width ≤ 5 mm
  • axial cracks with a width ≤ 3 mm
  • combination of cracks in the longitudinal and radial direction under the conditions mentioned above
  • leaking coupling gaps (pipe connections)
  • no root ingrowths
  • working temperature: > 5 °C

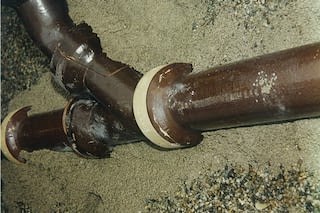

Before

Damaged sewer before rehabilition

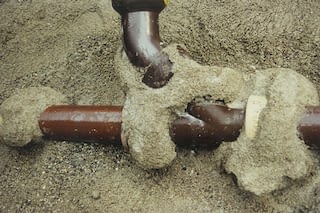

After

Sewer pipe after rehabilitation

Physical and chemical properties

Nominal values ex works

STAUBCO® Silikatkomponente A

Appearance:colorless, odorless, liquid
Flashpoint:does not apply
Solubility in water:fully miscible
Density at 20 °C:1.34 - 1.38 g/cm³
pH at 20 °C 10% solution:11 - 12
Storage:use only approved steel and plastic containers; in closed containers
Hazardous substance:no
Protective measures:rubber gloves, protective eyewear, protective clothing

STAUBCO® Härter CA

Appearance:colorless, odorless, liquid
Flashpoint:does not apply
Solubility in water:ully miscible
Density at 20 °C:1.31 - 1.35 g/cm³
pH at 20 °C 10% solution:5 - 7
Storage:use only approved steel and plastic containers; in closed containers
Hazardous substance:no
Protective measures:rubber gloves, protective eyewear, protective clothing

Checking the usability of previously used components

Our STAUBCO® sewer channeling components can be reused many times. The products must be checked for usability before each rehabilitation or cycle.

STAUBCO® Silikatkomponente A

  Values ex production:usable until:
Density at 20 °C:1.34 - 1.38 g/cm³> 1.28 g/cm³
Temperature:approx. 25 °C> 5 °C
Conductance at 20 °C:25 - 40 ms/cm< 150 ms/cm

STAUBCO® Härter CA

  Values ex production:usable until:
Density at 20 °C:1.31 - 1.35 g/cm³> 1.25 g/cm³
Temperature:approx. 20 °C> 5 °C
Conductance at 20 °C:120 - 155 ms/cm< 300 ms/cm

Gel test

  1. Place the STAUBCO® Silikatkomponente A in a small container (e.g. yogurt cup) and add the same amount of STAUBCO® Härter CA (e.g. 50 mL).
  2. Stir briefly.
  3. A solid, white conglomerate should form on the bottom within 3 minutes at most.
  4. The supernatant forms a clear liquid.
